Name: Guardrail

Display Field: GRID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description:

Service Item Id: 9d406579295b44f4b11e2106f3405d4c

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 24000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1358406.5446855575
YMin: 381479.70448456705
XMax: 1485232.0794198066
YMax: 572354.835200727
Spatial Reference: 2893  (2893)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Maint_Resp
Field 2: Damage_Type
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSLSSolid
Color: [104, 104, 104, 255]
Width: 1
Default Label: Non-County Damaged
UniqueValueInfos:
• Value: County,
  Label: County
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 0, 169, 255]
  Width: 2
• Value: County,None
  Label: County
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 0, 169, 255]
  Width: 2
• Value: County,Deterioration/Material Failure
  Label: County Damaged
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 2
• Value: County,Missing Element
  Label: County Damaged
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 2
• Value: County,Other
  Label: County Damaged
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 2
• Value: County,Structural/Accident
  Label: County Damaged
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 2
• Value: Non-County,None
  Label: Non-County
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 115, 223, 255]
  Width: 1
• Value: Non-County,
  Label: Non-County
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 115, 223, 255]
  Width: 1
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementAboveAlong
Label Expression: [GRID]
Use Coded Values: true
Symbol:
Color: [230, 0, 169, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: Tahoma
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 24000.0
Max. Scale: 0.0
Label Placement: esriServerLinePlacementAboveAlong
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [230, 0, 169, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Tahoma
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 24000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: true

Has Attachments: true

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• GRID ( type: esriFieldTypeSmallInteger, alias: GRID )
• GPS_Date ( type: esriFieldTypeDate, alias: GPS_Date, length: 8 )
• Beam_Type ( type: esriFieldTypeString, alias: Beam_Type, length: 1073741822 , Coded Values: [Cable: Cable] , [DORT: Double Rail Transition] , [Median: Double Sided] , ...6 more... )
• Beam_Material ( type: esriFieldTypeString, alias: Beam_Material, length: 1073741822 , Coded Values: [Brown Poly Coated: Brown Poly Coated] , [Galvanized: Galvanized] , [Steel Cable: Steel Cable] , ...3 more... )
• End_Treat_Beg ( type: esriFieldTypeString, alias: End_Treat_Beg, length: 255 , Coded Values: [Type A: Type A] , [Type B: Type B] , [Type C: Type C] , ...8 more... )
• End_Treat_End ( type: esriFieldTypeString, alias: End_Treat_End, length: 255 , Coded Values: [Type A: Type A] , [Type B: Type B] , [Type C: Type C] , ...8 more... )
• Damage_Type ( type: esriFieldTypeString, alias: Damage, length: 255 , Coded Values: [Structural/Accident: Structural/Accident] , [Deterioration/Material Failure: Deterioration/Material Failure] , [Missing Element: Missing Element] , ...3 more... )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 1073741822 )
• SEG_ID ( type: esriFieldTypeInteger, alias: SEG_ID )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• Maint_Resp ( type: esriFieldTypeString, alias: Maint Resp, length: 25 , Coded Values: [County: County] , [Non-County: Non-County] )
• Length_Ft ( type: esriFieldTypeDouble, alias: Length_Ft )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

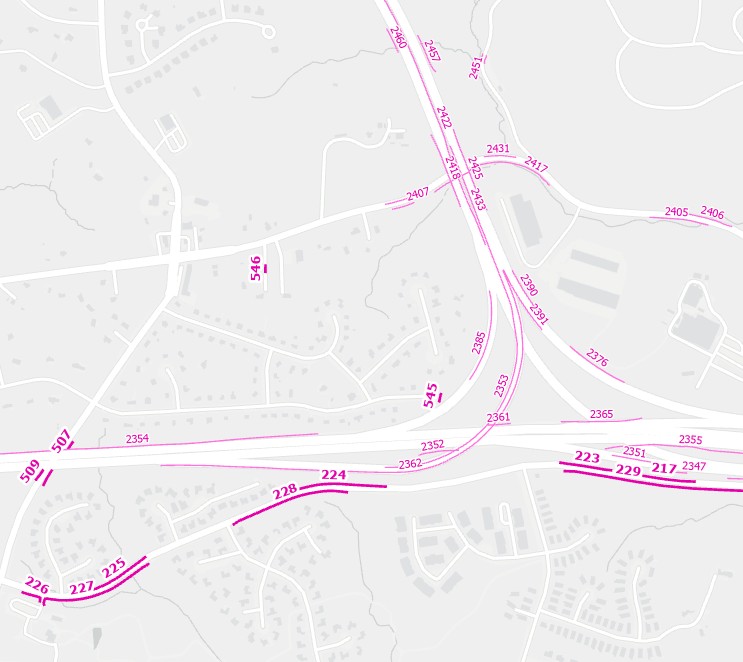

  Iteminfo   Thumbnail   Metadata
